使用Tomcat+geoserver+openlayers建立GIS网站过程
原创性声明：
请尊重本人劳动成果，转载时但请务必标明出处！！本人保留追究法律责任的权利。谢谢合作！
新建虚拟目录与虚拟主机：
虚拟目录：D:/ecsmap
WEB-INF下web.xml里的内容为：
<?xml version="1.0" encoding="ISO-8859-1"?>
<web-app xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
version="3.0"
metadata-complete="true">
<display-name>My Web Application</display-name>
<description>
An application for ECSMAP.
</description>
<servlet>
<servlet-name>Test</servlet-name>
<display-name>Test</display-name>
<description>A Servlet test.</description>
<servlet-class>test.Test</servlet-class>
</servlet>
<servlet>
<servlet-name>HelloWorld</servlet-name>
<display-name>HelloWorld</display-name>
<description>A Servlet test.HelloWorld!!</description>
<servlet-class>helloworld.HelloWorld</servlet-class>
</servlet>
<servlet-mapping>
<servlet-name>Test</servlet-name>
<url-pattern>/Test</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>HelloWorld</servlet-name>
<url-pattern>/HelloWorld</url-pattern>
</servlet-mapping>
</web-app>
tomcat/conf目录下的server.xml的内容如下：
<?xml version='1.0' encoding='utf-8'?>
<Server port="8005" shutdown="SHUTDOWN">
<Listener className="org.apache.catalina.core.AprLifecycleListener" SSLEngine="on" />
<Listener className="org.apache.catalina.core.JasperListener" />
<Listener className="org.apache.catalina.core.JreMemoryLeakPreventionListener" />
<Listener className="org.apache.catalina.mbeans.GlobalResourcesLifecycleListener" />
<Listener className="org.apache.catalina.core.ThreadLocalLeakPreventionListener" />
<GlobalNamingResources>
<Resource name="UserDatabase" auth="Container"
type="org.apache.catalina.UserDatabase"
description="User database that can be updated and saved"
factory="org.apache.catalina.users.MemoryUserDatabaseFactory"
pathname="conf/tomcat-users.xml" />
</GlobalNamingResources>
<Service name="Catalina">
<Connector port="8080" protocol="HTTP/1.1"
connectionTimeout="20000"
redirectPort="8443" />
<Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />
<Engine name="Catalina" defaultHost="localhost">
<Realm className="org.apache.catalina.realm.LockOutRealm">
<Realm className="org.apache.catalina.realm.UserDatabaseRealm"
resourceName="UserDatabase"/>
</Realm>
<Host name="localhost" appBase="webapps"
unpackWARs="true" autoDeploy="true">
<Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
prefix="localhost_access_log." suffix=".txt"
pattern="%h %l %u %t "%r" %s %b" />
<Context path="/ecsmap" docBase="D:/ecsmap" debug="0" reloadable="true"/>
</Host>
<Host name="ecsmap" debug="0" appBase="D:\ecsmap">
<Context path="" docBase="." debug="0"/>
</Host>
</Engine>
</Service>
</Server>
mytest.html的内容为：
<!DOCTYPE html>
<html lang='zh-cn'>
<head>
<meta charset='utf-8' />
<title>My OpenLayers Map</title>
<link rel="stylesheet" type="text/css" href="openlayers/theme/default/style.css"/>
<style type="text/css">
#map {
clear: both;
position: relative;
width: 1000px;
height: 600px;
border: 1px solid black;
}
</style>
<script type='text/javascript' src='openlayers/OpenLayers.js'></script>
<script type='text/javascript'>
var map;
function init() {
format = 'image/png';
var bounds = new OpenLayers.Bounds(
121.120606, 28.169589,
121.871688, 28.525587
);
var options = {
controls: [],
maxExtent: bounds,
maxResolution: 0.0013726171875,
projection: "EPSG:4326",
units: 'degrees'
};
map = new OpenLayers.Map('map', options);
//基础图层，可以用一个图层组做基础图层
var baselayer = new OpenLayers.Layer.WMS(
"底图",
"http://localhost:8080/geoserver/WenLing/wms",
{
layers:'WenLing:xianjie_region',
format:format,
},
{
isBaseLayer:true,//设置本层为基底图层
yx : {'EPSG:4326' : true}
}
);
//县界
var xianjie = new OpenLayers.Layer.WMS(
"县界",
"http://localhost:8080/geoserver/WenLing/wms",
{
layers: 'WenLing:xianjie_region',
transparent:true, //设置从服务器返回的地图图像是透明的
format: format
},
{
displayInLayerSwitcher:false, //使该图层不显示在switcher中
//minScale:xxx , //只有达到一定缩放比例该图层时才显示
opacity:0.5 //设置客户端图层半透明
}
);
//水系
var waters = new OpenLayers.Layer.WMS(
"水系", "http://localhost:8080/geoserver/WenLing/wms",
{
layers: 'WenLing:shuixi_region',
transparent:true,
format: format
},
{
opacity:1 //设置客户端图层不透明
}
);
//岛屿
var islands = new OpenLayers.Layer.WMS(
"岛", "http://localhost:8080/geoserver/WenLing/wms",
{
layers: 'WenLing:dao_region',
transparent:true,
format: format
},
{
opacity:0.5
}
);
//铁路
var tielu = new OpenLayers.Layer.WMS(
"铁路", "http://localhost:8080/geoserver/WenLing/wms",
{
layers: 'WenLing:tielu_polyline',
transparent:true,
format: format
},
{
transitionEffect:"resize", //使该图层放大或缩小时产生调整大小的动画
opacity:0.5
}
);
//县
var xian = new OpenLayers.Layer.WMS(
"县", "http://localhost:8080/geoserver/WenLing/wms",
{
layers: 'WenLing:xian_point',
transparent:true,
format: format
},
{
//minScale:xxx , //只有达到一定缩放比例该图层时才显示
opacity:0.5
}
);
//变电站
biandianzhan = new OpenLayers.Layer.WMS(
"变电站", "http://localhost:8080/geoserver/WenLing/wms",
{
layers: 'WenLing:biandianzhan_point',
transparent:true,
format: format
},
{
opacity:0.5
}
);
guangxianwang = new OpenLayers.Layer.WMS(
"光纤网", "http://localhost:8080/geoserver/WenLing/wms",
{
layers: 'WenLing:guangxianwang_polyline',
transparent:true,
format: format
},
{
transitionEffect:"resize", //使该图层放大或缩小时产生调整大小的动画
opacity:0.5
}
);
map.addLayers([baselayer, xianjie, waters, islands, tielu, xian, biandianzhan, guangxianwang]);
map.setCenter(map.getCenter());//设置地图中心点
map.addControl(new OpenLayers.Control.PanZoomBar({
position: new OpenLayers.Pixel(2, 15)
}));
map.addControl(new OpenLayers.Control.Navigation());
map.addControl(new OpenLayers.Control.LayerSwitcher());
map.addControl(new OpenLayers.Control.Scale($('scale')));
map.addControl(new OpenLayers.Control.MousePosition());
map.zoomToExtent(bounds);
if (!map.getCenter()) {
map.zoomToMaxExtent();
}
}
</script>
</head>
<body onload='init();'>
<div id='map'>
</div>
</body>
</html>在浏览器输入：http://ecsmap:8080/mytest.html，

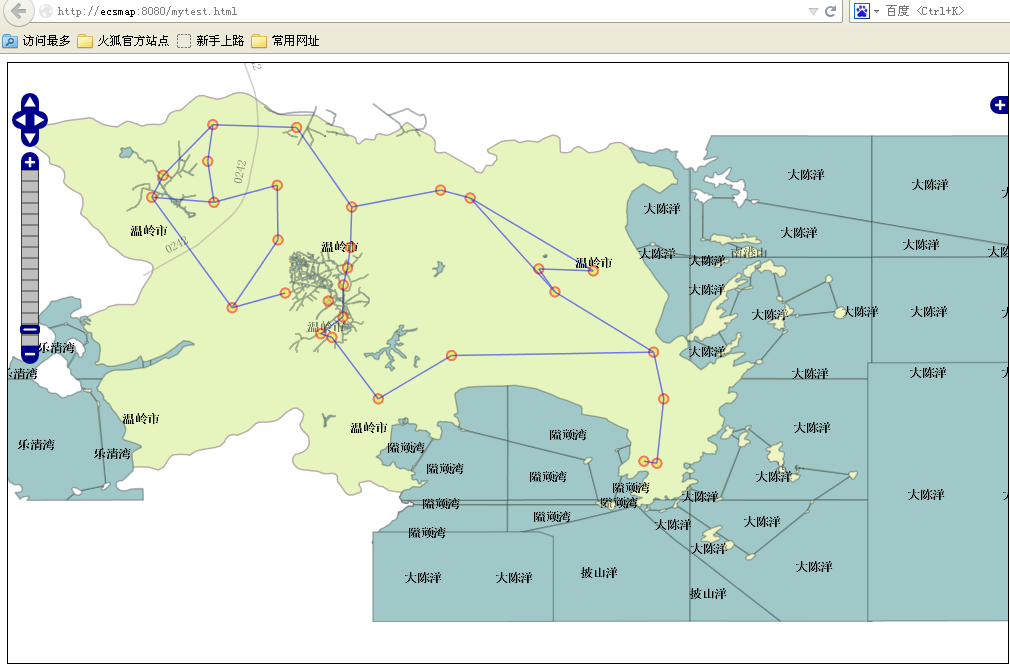

测试结果为：
